Doors and frames take more abuse than almost any other surface in a healthcare, education or institutional building. Carts, beds, wheelchairs and floor scrubbers all meet the door at the same few points, and the damage shows up fast: chipped frames, gouged door faces and worn finishes around the lever. Door and frame protection products address those points directly, and choosing the right ones early keeps repair work off the facility manager’s list for years.
What gets damaged, and what protects it
Most door damage happens in predictable zones. Matching the product to the zone is the core of a good spec.
- Kick plates: protect the lower part of the door from feet, carts and equipment.
- Push plates: protect the face of the door where hands push it open.
- Mop and stretcher plates: deeper plates for doors that see housekeeping equipment or stretchers.
- Door cladding or wraps: cover the full door face, and sometimes the edges, for doors that get hit everywhere.
- Frame protectors: cover the hollow metal frame, especially the jamb edges where carts strike first.
- Lever and knob protectors: shield the door around the lockset from hardware and hand wear.
Construction Specialties: Acrovyn door and frame protection
C/S offers Acrovyn kick and push plates in Acrovyn or polycarbonate sheet, plus stainless steel options, in thicknesses listed on its product pages. Its door cladding is supplied as Acrovyn sheet sized to standard door widths and heights, and it also lists lever protectors and custom-formed frame protectors that fit over interior door frames.
For new construction, C/S also makes Acrovyn Doors. These are complete door leaves with an Acrovyn-clad face and replaceable edge stiles, so a damaged edge can be swapped on site rather than replacing the whole door. C/S lists non-rated and fire-rated versions across a range of durations; confirm the rating for your specific opening on the current product literature.
Inpro: door and frame protection
Inpro’s door protection range includes kickplates in its Palladium rigid sheet and in stainless steel, along with door frame guards. Its frame guard options include custom-formed guards shaped to the frame profile and high-impact frame guards for heavy-traffic openings. Inpro’s product pages and technical data sheets list materials, finishes and installation methods by product.
Retrofit vs new construction
New construction
On a new build, door protection should be coordinated between the Division 08 door and hardware supplier and the Division 10 protection supplier. Frame protectors need accurate frame profiles, so shop drawings should reference the approved hollow metal frame submittals. Kick plate widths and heights must work with the hardware schedule, including closers, door bottoms and any electrified hardware.
Retrofit
Retrofit is where door and frame protection often earns its keep. Many products are designed to go over existing doors and frames with adhesive or mechanical fastening, without removing the door. Before ordering:
- Field verify every frame profile. Frames that look identical on drawings often differ in face width or rabbet depth.
- Check the door label and surrounding hardware before adding anything to a rated door (see below).
- Survey existing damage. Badly dented frames may need repair before a frame protector will sit properly.
- Plan phasing in occupied buildings so rooms and corridors stay usable.
Fire-rated doors: proceed carefully
Adding protection to a fire-rated door or frame is not just a finishes decision. The rating depends on the door being installed and maintained as tested and listed, and field modifications can affect that.
NFPA 80, the standard for fire doors and other opening protectives, addresses protection plates directly. In general terms, plates kept to the bottom portion of the door are treated differently from taller plates, and newer editions require plates that extend above a set height to be labelled. Beyond that, the door manufacturer’s listing can limit plate height, material and whether plates are allowed on one or both faces.
Practical steps for any rated opening:
- Read the label on the door and frame before specifying or installing anything.
- Confirm with the door manufacturer, or through the hardware supplier, that the plate or cladding is acceptable for that door’s listing.
- Use products the manufacturer identifies as suitable for rated doors, and follow their installation instructions exactly.
- Do not cover or remove fire labels, and do not drill rated frames without approval.
- Ask the consultant or authority having jurisdiction when in doubt. A non-compliant door can become a deficiency on the fire inspection.
Maintenance benefits
The case for door and frame protection usually comes down to lifecycle cost. Unprotected hollow metal frames chip, rust at the damage points and need repeated touch-up painting. Wood door faces and edges splinter and are hard to repair to a clean finish. Protective covers take that wear instead.
Manufacturers point to easy cleaning, resistance to scuffing and, for some materials, antimicrobial additives in the product. When a section is damaged, a single plate or frame cover can usually be replaced without replacing the door or frame. Leaving attic stock at closeout makes those repairs simple for the maintenance team.
A GRIT project example

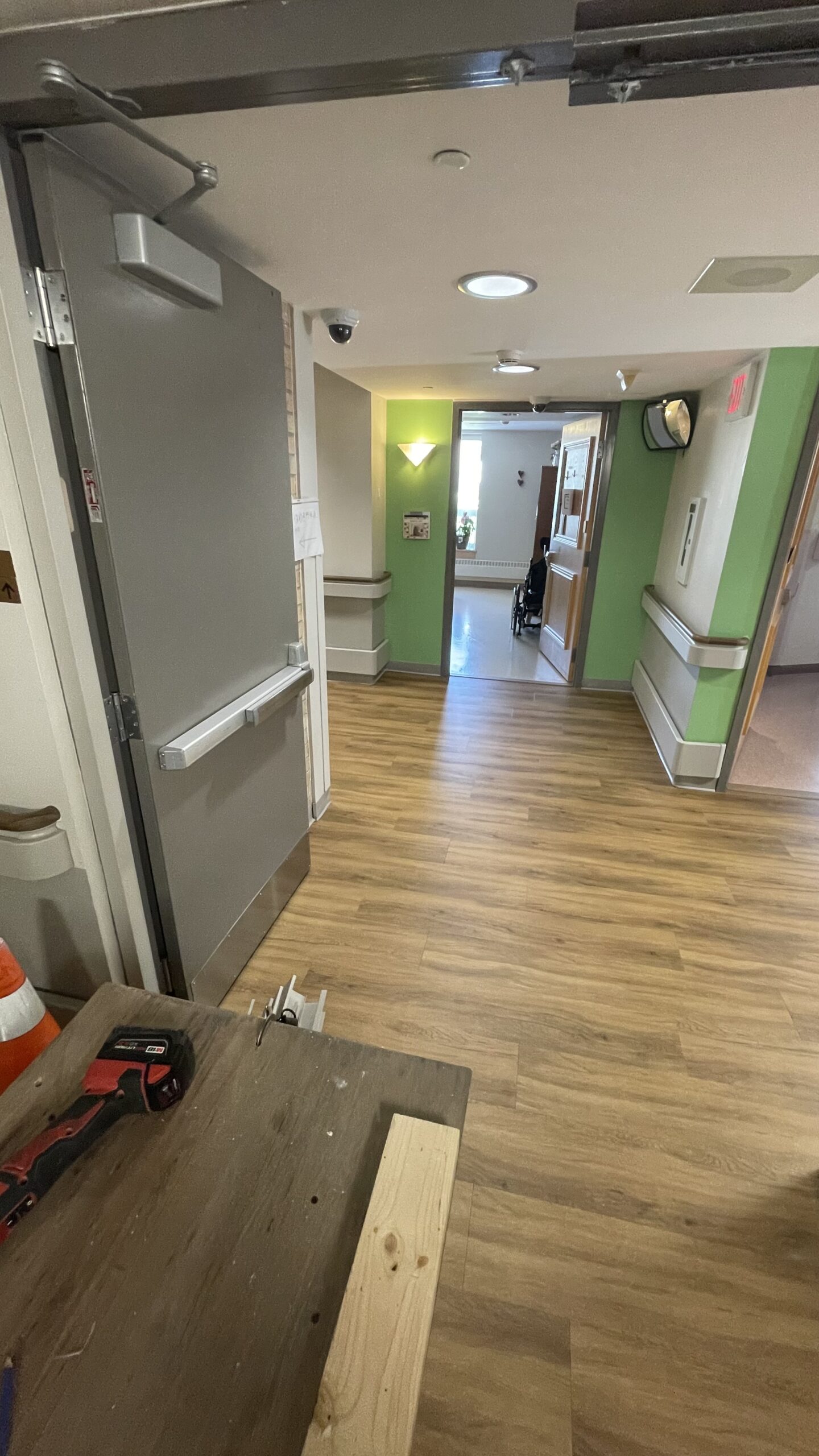

At Newmarket Health, a long-term care home, GRIT installed Acrovyn door frame protection in high-traffic areas. Work in occupied LTC homes means coordinating with staff room by room, keeping egress clear and cleaning up each day. More examples are on our projects page.
Need door and frame protection priced?
GRIT Construction Services supplies and installs Acrovyn wall, corner and door frame protection across the GTA as an authorized Acrovyn installer. We carry $5M CGL coverage and WSIB clearance, and we quote within 48 hours of receiving drawings. Learn more about our wall, corner and door protection services or contact us at (647) 382-8256 or info@gritcon.ca.
Sources
C/S door and frame protection; C/S guide to Acrovyn Doors; Inpro kickplates; iDigHardware: protection plates on fire doors.
